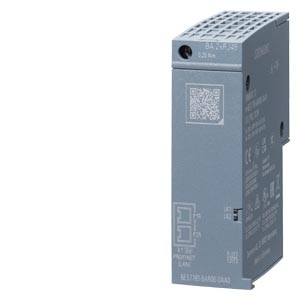

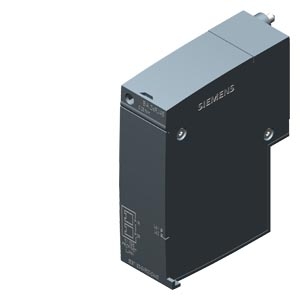

Siemens 6ES7193-6AR00-0AA0 SIMATIC ET 200SP, BusAdapter BA 2xRJ45, 2 RJ45 sockets







Data sheet 6ES7193-6AR00-0AA0
SIMATIC ET 200SP, BusAdapter BA 2xRJ45, 2 RJ45 sockets
General information
Product type designation BA 2x RJ45
Interfaces
Number of PROFINET interfaces 1
Supports protocol for PROFINET IO

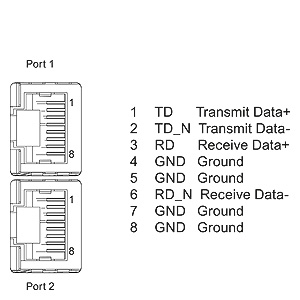

● Number of RJ45 ports 2
Cable length
— Cu conductors 100 m
Ambient conditions
Ambient temperature during operation
● horizontal installation, min. -30 °C
● horizontal installation, max. 60 °C
● vertical installation, min. -30 °C
● vertical installation, max. 50 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system
manual

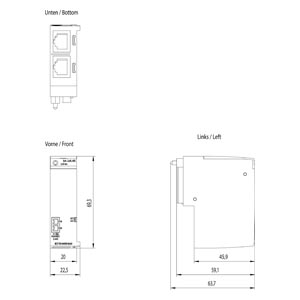

Dimensions
Width 20 mm
Height 69.5 mm
Depth 59 mm
Weights
Weight, approx. 46 g
last modified: 8/16/2023
6ES71936AR000AA0
Page 1/1 1/11/2024 Subject to change without notice
© Copyright Siemens
